Complete specifications
Overall use of high quality material.Than ordinary materiai hardness,moisture resistancenot easy to rust
Smooth surface without burrs
Smooth surface without burr,uniform force.Stable structure,aging resistance,long service life
Simple structure easy to use
Adopt professional testing equipment to strictly test the size and quality of products,so as to ensure the standard of products
Quality manufacturer
Can be customized according to customer requirementsa variety of specifications.Can be customized to draw samples.We will provide you with a reference solution
Us Standard G80 Ratchet Chain Tensioner Load Binder

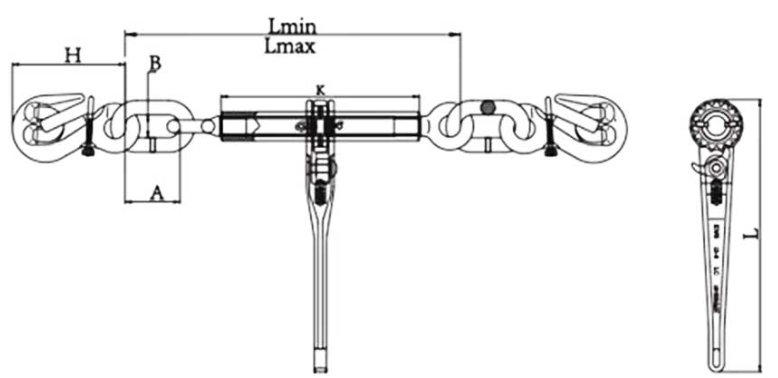

| ITEM NO. | WEIGHT(Kg) | LC(KN) | B.F(KN) | A | B | H | Lmin | Lmax | L |
| HYR01-7101 | 3.18 | 40 | 80.4 | 50 | 25 | 94 | 340 | 500 | 210 |
| HYR01-7102 | 5.30 | 63 | 126 | 50 | 25 | 120 | 365 | 525 | 280 |
| HYR01-7103 | 9.5 | 100 | 212 | 72 | 30 | 144 | 365 | 525 | 358 |
| HYR01-7104 | 12.6 | 160 | 322 | 72 | 32 | 178 | 390 | 550 | 392.5 |

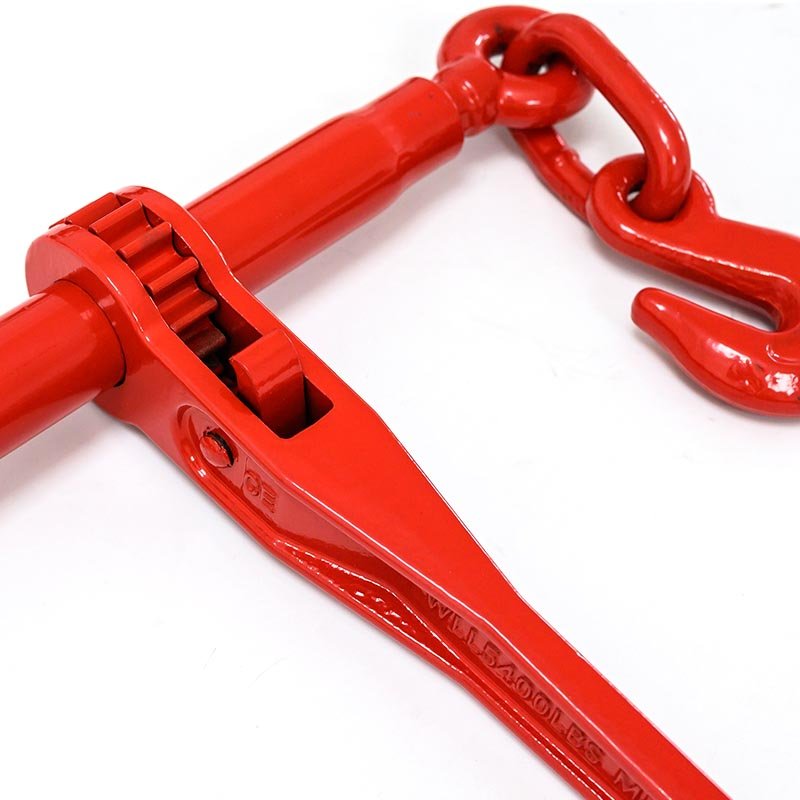

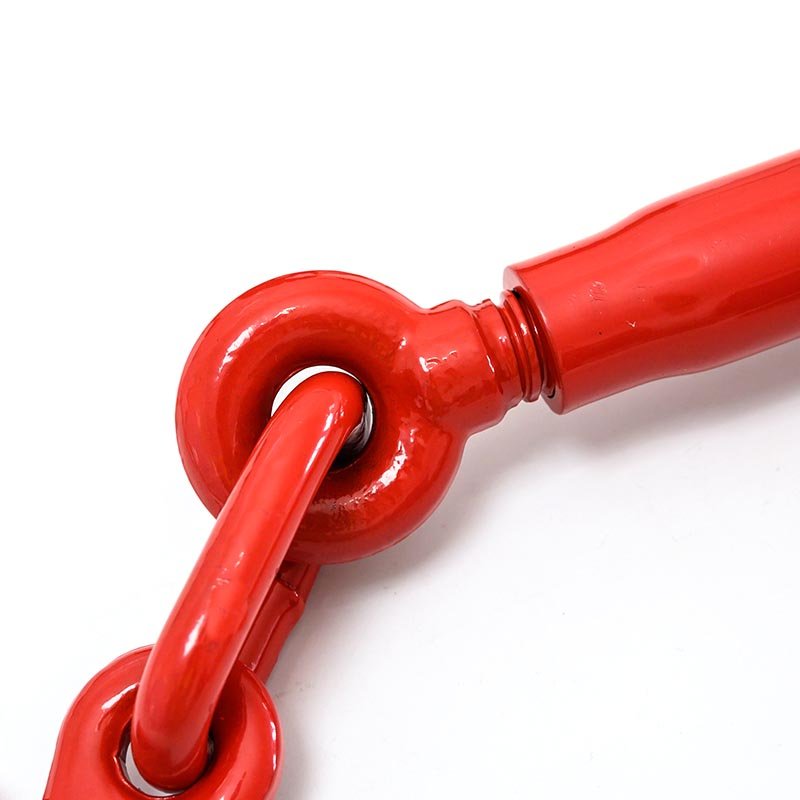

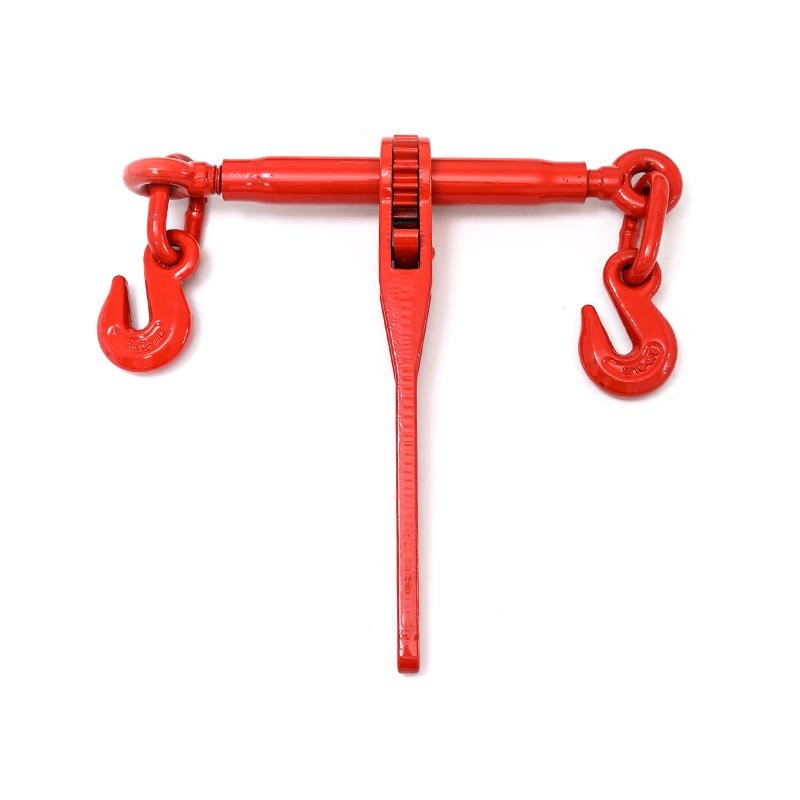

Detailed Photos
Advantages:
1. Superior Quality& competitive Price.
2. Excellent service with fast delivery and free sample.
3. Convenience of installation
Why choose us?
1. Being in this field for 12 years.
2. Our company includes more than 100 kinds of products.
3. OEM orders are very welcome.
4. Innovation concept is our developing source.
Primary competitive advantages: Quality assurance, reasonable prices, service country of origin, experience technical staff, excellent product performance.
Service: We're happy to quote prices or send price list, if you need something not in the catalogue, we"ll try to find it for you.
Specifications and Marks can be produced according to customers 'requirements.
Ratchet Type Load Binder with Hook and Pin
