Product details
The producthas been inspectedatvarious levels and conforms to the industry standard
Strict selection of raw materials
Strictly select raw materials that meet industry standards, and are processed and manufactured.
Deep thread
The fasteners we produce have clear threads, even and deep pitch, and good fastening effect.
Meticulous workmanship
Smooth surface without burrs, uniform force, stable and reliable quality

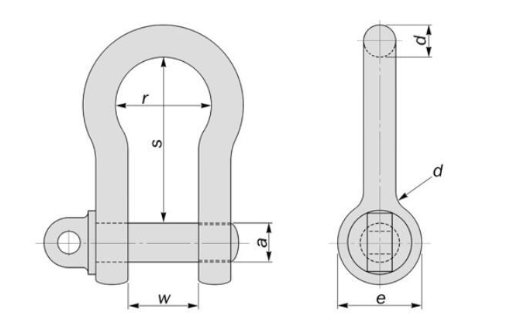

LARGE BOW BS3032 SHACKLE
| WLL(t) | Dimensions(mm) | Weight | ||||
| d | D | e | w | s | (kg) | |
| 0.25 | 6.00 | 10 00 | 19.00 | 13.00 | 25.00 | 0.11 |
| 0.50 | 10.00 | 13.00 | 25.00 | 19.00 | 38.00 | 0.17 |
| 0.75 | 13.00 | 16.00 | 32.00 | 26.00 | 54.00 | 0.35 |
| 1.50 | 16.00 | 19.00 | 38.00 | 32.00 | 64.00 | 0.68 |
| 2.00 | 19.00 | 22 00 | 44.00 | 38.00 | 73.00 | 1.02 |
| 3.00 | 22.00 | 25.20 | 50.00 | 44.00 | 82.00 | 1.57 |
| 3.75 | 25 00 | 28 30 | 56.00 | 51.00 | 95.00 | 2.30 |
| 5.00 | 28.00 | 31.70 | 63.00 | 54.00 | 105.00 | 3.20 |
| 6.00 | 32.00 | 35 00 | 70.00 | 60.00 | 114.00 | 4.30 |
| 7.00 | 35.00 | 38.00 | 75.00 | 67.00 | 127.00 | 5.40 |
| 9.50 | 38.00 | 43.00 | 89.00 | 70.00 | 137.00 | 6.80 |
| 11.25 | 42.00 | 48.00 | 89.00 | 76.00 | 146.00 | 8.70 |
| 13 00 | 44.00 | 51 00 | 95.00 | 83.00 | 156 00 | 11 00 |
| 14.00 | 48.00 | 54.00 | 106.00 | 92.00 | 178.00 | 14.30 |
| 16.00 | 51 00 | 57.00 | 114.00 | 98.00 | 187 00 | 20.00 |
| 18.00 | 54.00 | 60.00 | 124.00 | 105.00 | 197.00 | 26.40 |
| 20 00 | 57.00 | 64 00 | 127.00 | 108 00 | 210 00 | 28.30 |
| 25.00 | 64.00 | 73.00 | 148.00 | 121.00 | 0.00 | 36.00 |
| 30.00 | 70.00 | 79.00 | 150.00 | 123.00 | 260 00 | 40.00 |
| 35.00 | 76.00 | 86.00 | 171.00 | 146.00 | 279.00 | 63.60 |
| 40 00 | 79.00 | 89 00 | 178.00 | 149.00 | 292.00 | 71.70 |
| 50.00 | 89.00 | 102.00 | 203.00 | 171.00 | 330.00 | 101.00 |
| 65 00 | 102.00 | 114.00 | 229.00 | 181.00 | 275.00 | 151.00 |
| 80.00 | 114.00 | 127.00 | 254.00 | 219.00 | 419.00 | 215.00 |
