Exquisite·Excellent quality
Automatic Production Line Operates, with high production efficiency and fast delivery.
Exquisite workmanship
The surface is smooth without Burr,firm and durable
Custom processing
our factory is powerful with abundant product supply and wide range of product customizations,
welcome to order and inquiry.
U.S.Bolt Type Anchor & Chain Shackles

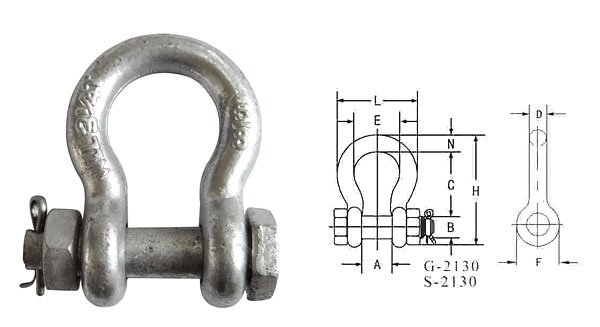

Product code | Wight each(kg) | Nominal Size(in) | WWL(t) | Dimensions(mm) | ||||||||||
2130 | 2130 | A | B | C | D | E | F | G | H | L | M | P | P | |
HYR01-S1301 | 0.03 | 3/16 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | - | 37.3 | 24.9 | - | 32.77 |
HYR01-S1302 | 0.05 | 1/4 | 1/2 | 11.90 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 19.05 | 46.7 | 32.5 | 15.49 | 39.62 |
HYR01-S1303 | 0.10 | 5/16 | 3/4 | 13.50 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 25.40 | 53.0 | 37.3 | 19.05 | 46.23 |
HYR01-S1304 | 0.15 | 3/8 | 1 | 16.80 | 11.20 | 36.6 | 9.65 | 26.2 | 23.1 | 30.99 | 63.0 | 45.2 | 23.11 | 55.12 |
HYR01-S1305 | 0.22 | 7/16 | 11/2 | 19.10 | 12.70 | 42.9 | 11.20 | 29.5 | 26.9 | 36.09 | 74.0 | 51.5 | 41.15 | 63.75 |
HYR01-S1306 | 0.36 | 1/2 | 2 | 20.60 | 16.00 | 47.8 | 12.70 | 33.3 | 30.2 | 41.04 | 83.5 | 58.5 | 45.97 | 71.12 |
HYR01-S1307 | 0.76 | 5/8 | 31/4 | 26.90 | 19.10 | 60.5 | 16.00 | 42.9 | 38.1 | 50.80 | 106.0 | 74.5 | 58.67 | 89.66 |
HYR01-S1308 | 1.23 | 3/4 | 43/4 | 31.80 | 22.40 | 71.5 | 19.10 | 51.0 | 46.0 | 60.45 | 126.0 | 89.0 | 69.85 | 103.38 |
HYR01-S1309 | 1.79 | 7/8 | 61/2 | 36.60 | 25.40 | 84.0 | 22.40 | 58.0 | 53.0 | 71.37 | 148.0 | 102.0 | 81.03 | 119.63 |
HYR01-S1310 | 2.57 | 1 | 81/2 | 42.90 | 28.70 | 95.5 | 25.40 | 68.5 | 60.5 | 81.03 | 167.0 | 119.0 | 93.73 | 134.87 |
HYR01-S1311 | 3.75 | 1-1/8 | 91/2 | 46.00 | 31.80 | 108.0 | 28.70 | 74.0 | 68.5 | 90.93 | 190.0 | 131.0 | 103.12 | 149.86 |
HYR01-S1312 | 5.31 | 1-1/4 | 12 | 51.50 | 35.10 | 119.0 | 31.80 | 82.5 | 76.0 | 100.08 | 210.0 | 146.0 | 115.06 | 165.35 |
HYR01-S1313 | 7.18 | 1-3/8 | 131/2 | 57.00 | 38.10 | 133.0 | 35.10 | 92.0 | 84.0 | 111.25 | 233.0 | 162.0 | 127.00 | 183.13 |
HYR01-S1314 | 9.43 | 1-1/2 | 17 | 60.50 | 41.40 | 146.0 | 38.10 | 98.5 | 92.0 | 122.17 | 254.0 | 175.0 | 136.05 | 196.34 |
HYR01-S1315 | 15.40 | 1-3/4 | 25 | 73.00 | 51.00 | 178.0 | 44.50 | 127.0 | 106.0 | 146.05 | 313.0 | 225.0 | 162.05 | 229.87 |
HYR01-S1316 | 23.70 | 2 | 35 | 82.50 | 57.00 | 197.0 | 51.00 | 146.0 | 122.0 | 171.45 | 348.0 | 253.0 | 184.15 | 264.41 |
HYR01-S1317 | 44.60 | 2-1/2 | 55 | 105.00 | 70.00 | 267.0 | 66.50 | 184.0 | 145.0 | 203.20 | 453.0 | 327.0 | 238.25 | 344.42 |
HYR01-S1318 | 70.00 | 3 | 85 | 127.00 | 82.50 | 330.0 | 76.00 | 200.0 | 165.0 | 215.90 | 546.0 | 365.0 | 279.40 | 419.10 |
HYR01-S1319 | 120.00 | 3-1/2 | 120 | 133.00 | 95.50 | 372.0 | 92.00 | 229.0 | 203.0 | - | 626.0 | 419.0 | - | 482.60 |
HYR01-S1320 | 153.00 | 4 | 150 | 140.00 | 108.00 | 368.0 | 104.00 | 254.0 | 229.0 | - | 653.0 | 468.0 | - | |

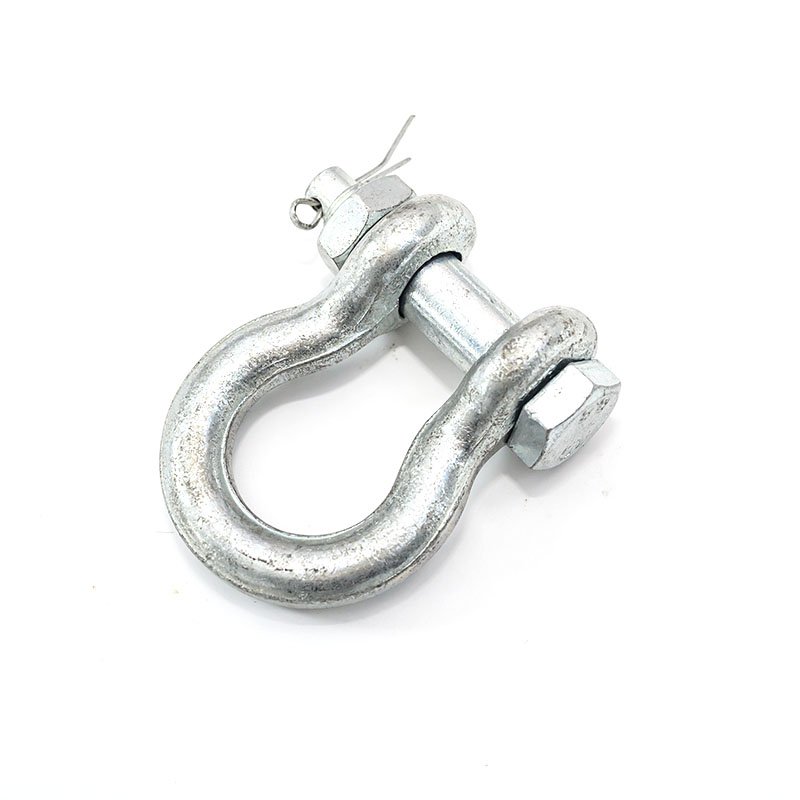

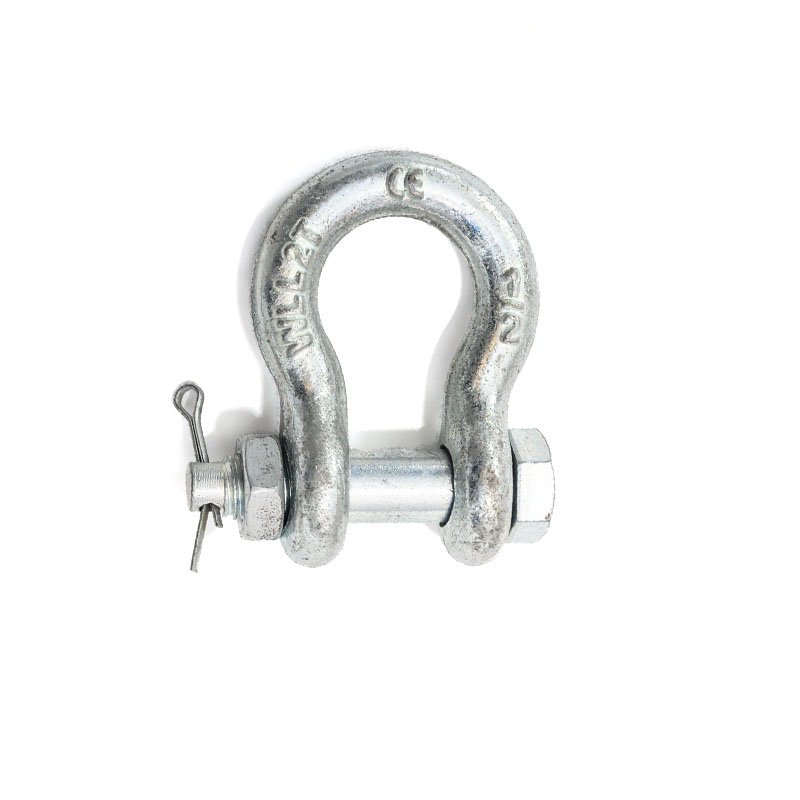

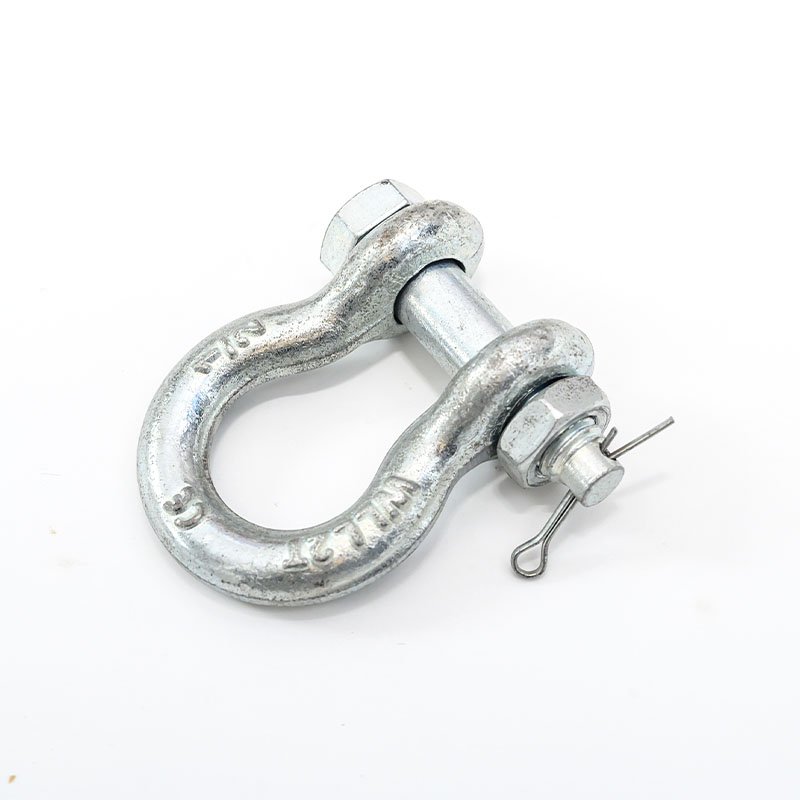

Detailed Photos
