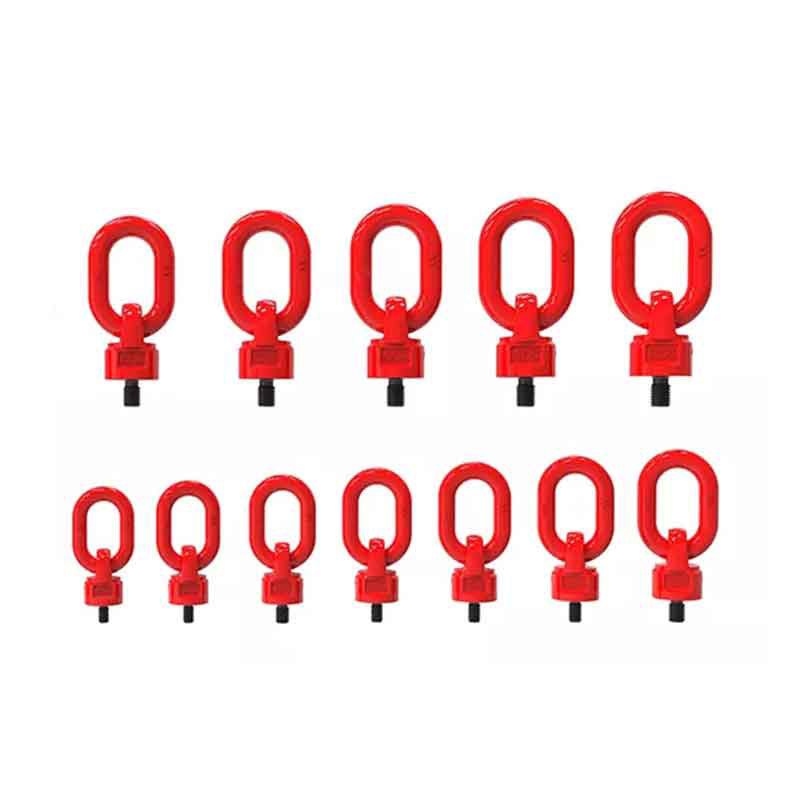

Complete specifications
Overall use of high quality material.Than ordinary materiai hardness,moisture resistancenot easy to rust
Smooth surface without burrs
Smooth surface without burr,uniform force.Stable structure,aging resistance,long service life
Simple structure easy to use
Adopt professional testing equipment to strictly test the size and quality of products,so as to ensure the standard of products
Quality manufacturer
Can be customized according to customer requirementsa variety of specifications.Can be customized to draw samples.We will provide you with a reference solution

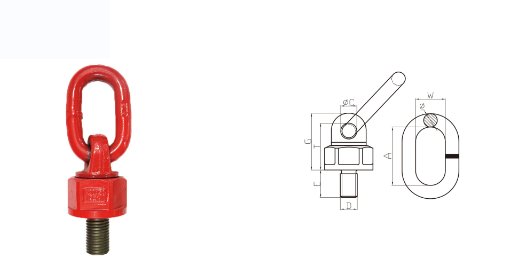

G80 Lifting Screw Point
| ITEM NO. | WEIGHT(kg) | WLL(T) | B.L(T) | DxE | C±2 | G±1 | T±2 | A±5 | W±5 | φ±0.5 |
| 90° | 0° | |||||||||
| HY-8-304-M8x13 | 0.54 | 0.3 | 0.6 | M8x13 | 16.5 | 53 | 42 | 55 | 30 | 14 |
| HY-8-304-M10x18 | 0.54 | 0.45 | 0.9 | M10x18 | 16.5 | 53 | 42 | 55 | 30 | 14 |
| HY-8-304-M12x20 | 0.55 | 0.5 | 1 | M12x20 | 16.5 | 53 | 42 | 55 | 30 | 14 |
| HY-8-304-M14x20 | 0.55 | 1.12 | 2 | M14x20 | 16.5 | 53 | 42 | 55 | 30 | 14 |
| HY-8-304-M16x25 | 0.57 | 1.12 | 2 | M16x25 | 16.5 | 53 | 42 | 55 | 30 | 14 |
| HY-8-304-M20x33 | 1.11 | 2 | 4 | M20x33 | 19 | 68 | 56 | 70 | 35 | 16 |
| HY-8-304-M24x40 | 1.7 | 3.15 | 6.3 | M24x40 | 22 | 78 | 65.5 | 85 | 40 | 18 |
| HY-8-304-M27x40 | 1.7 | 3.15 | 6.3 | M27x40 | 22 | 78 | 65.5 | 85 | 40 | 18 |
| HY-8-304-M30x50(5T) | 2.55 | 5.3 | 10.6 | M30x50 | 23.5 | 97 | 81 | 85 | 40 | 20 |
| HY-8-304-M30x50(8T) | 3.9 | 8 | 11.8 | M30x50 | 28 | 113 | 93 | 115 | 50 | 22 |
| HY-8-304-M36x54 | 3.9 | 8 | 11.8 | M36x54 | 28 | 110 | 90 | 115 | 50 | 22 |
| HY-8-304-M39x54 | 4 | 8 | 11.8 | M39x54 | 28 | 110 | 90 | 115 | 50 | 22 |
| HY-8-304-M42x63 | 4.54 | 10 | 15 | M42x63 | 28 | 110 | 90 | 115 | 50 | 25 |
| HY-8-304-M48x68 | 4.82 | 10 | 15 | M48x68 | 28 | 110 | 90 | 115 | 50 | 25 |
| HY-8-304-M56x84 | 12 | 15 | 30 | M56x84 | 42 | 165 | 133 | 152 | 70 | 32 |
| HY-8-304-M64x95 | 12.75 | 15 | 30 | M64x95 | 42 | 165 | 133 | 152 | 70 | 32 |

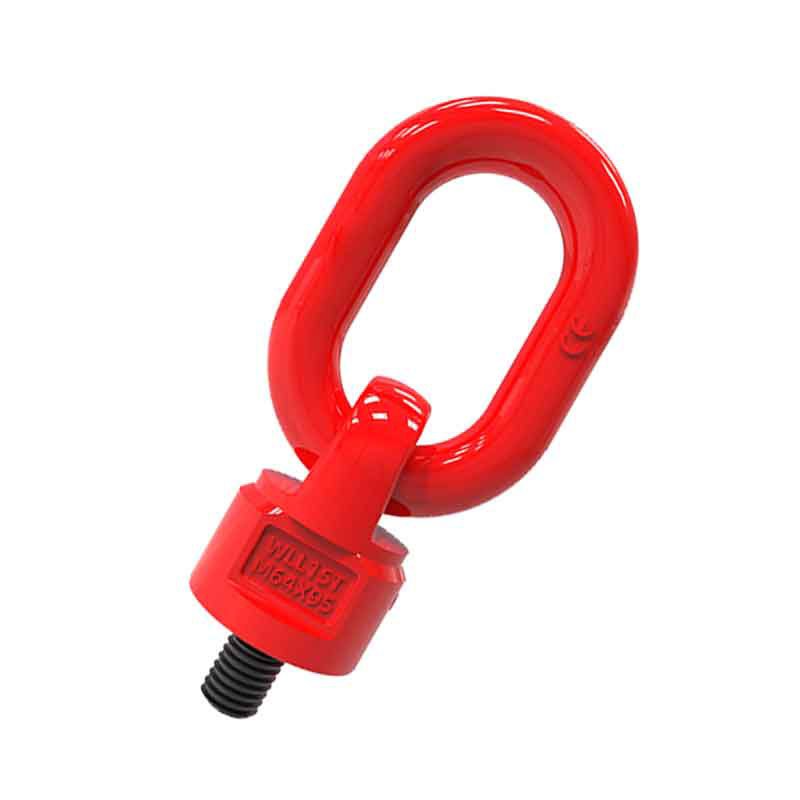

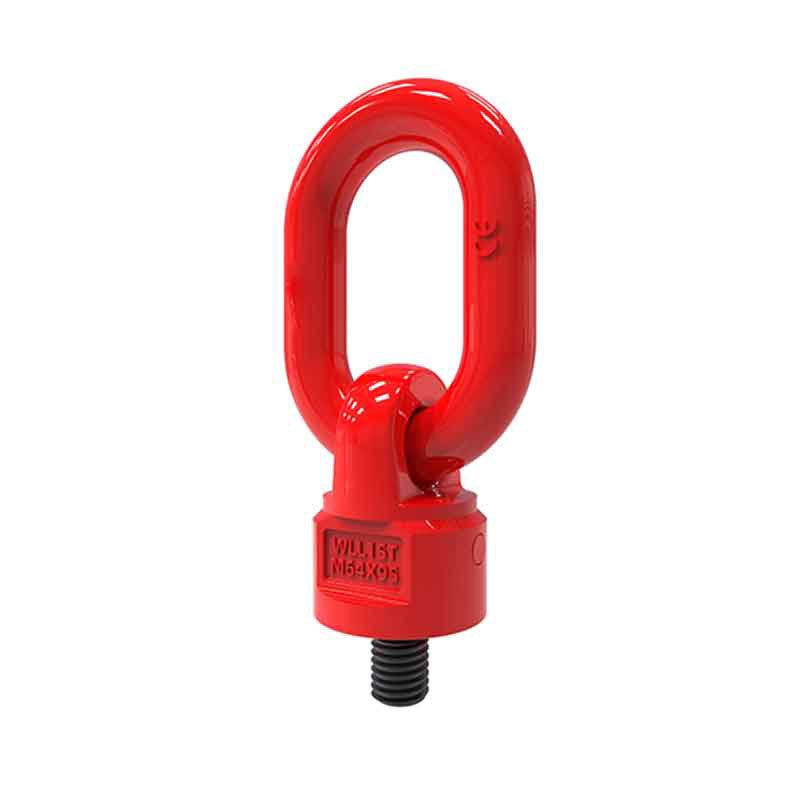

Detailed Photos
Material: 35Crmo
Surface: Powder Platified
Packing: Carton and iron pallet
Treatment: Quenched and Tempered
Breakage test
All load pin are 100% individually inspectde and tested
