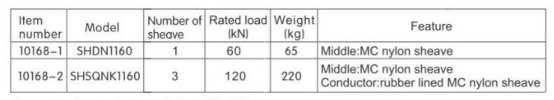

Notes:1.Maximum suitable conductor ACSR1250

2.Sheave Dimension for conductor ( outside diameterx root diameter x sheave width) Φ1160xΦ1000x150(mm).

3.Sheave Dimension for steel wire rope ( outside diameterx root diameter * sheave width) Φ1160xΦ1000x130(mm).

4.The rubber lined MC nylon sheave are half lined.
