Mechanical jack

Product Properties

After Sales Service: Yes

Warranty: yes

Type: mechanical jack

Structure: Pneumatic jack

Capacity (Load): 31-40T

Power Source: Pneumatic


Product Description

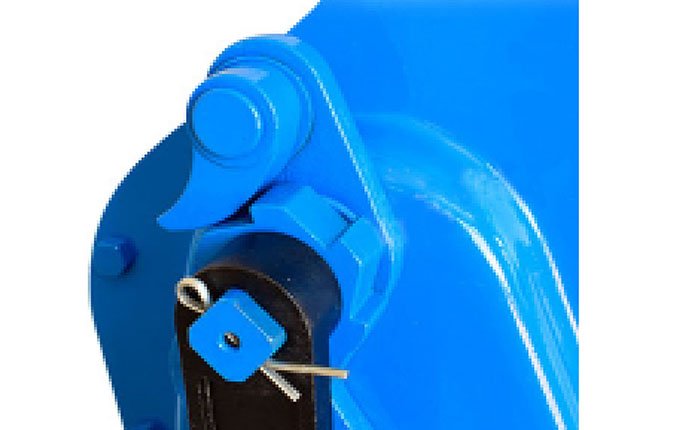

  • THICKENED SLOTS
    THICKENED SLOTS

    ●

    safety and durable

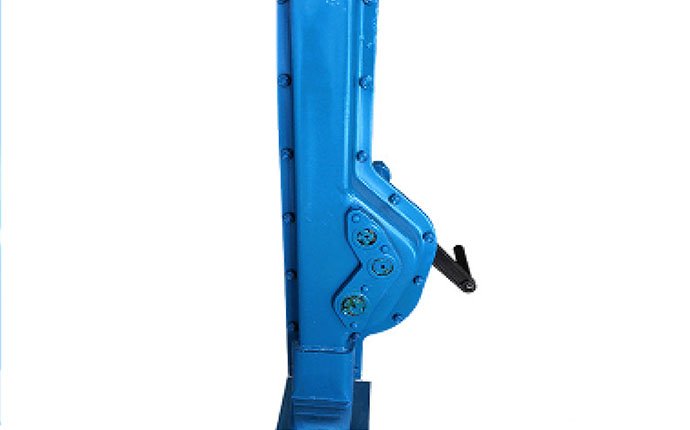

  • SELF-LOCKING BRAKE
    SELF-LOCKING BRAKE

    ●

    Automatic brake Easy to operate Simple and convenient

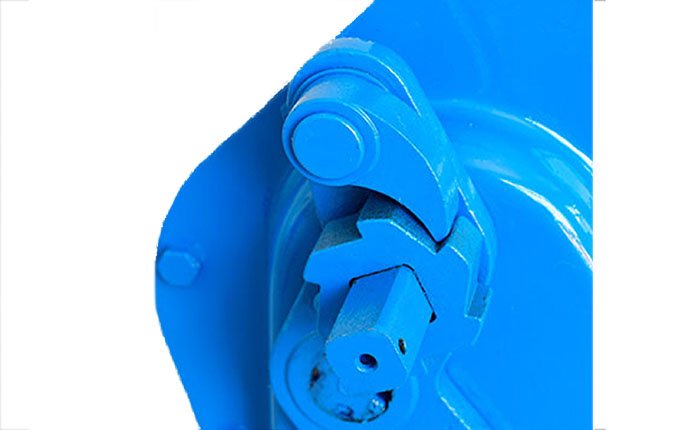

  • THICK CLAW
    THICK CLAW

    ●

    Wear resistant and durable.

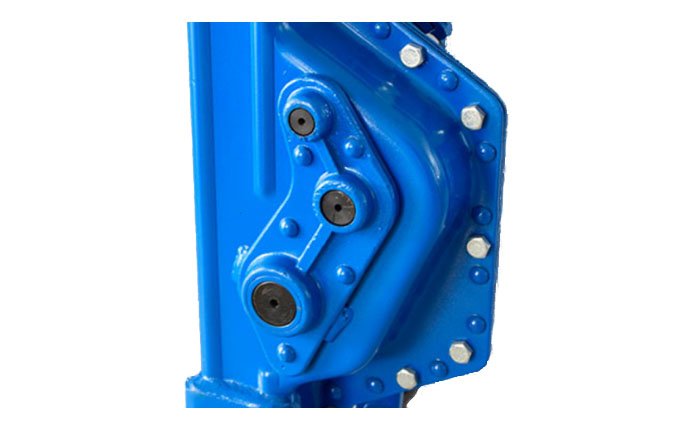

  • HIGH QUALITY STEEL
    HIGH QUALITY STEEL

    ●

    High quality thick steel Safety and durability


Characteristics:

1. All high-strength steel structure makes it safe and durable.

2. Double leg brake system, brake quickly.

3. Low gear tolerance, smooth transmissions, no jerking.

4. High efficiency and minimal swing force, less than 25kg is required to lift full load of full rated capacity.

5. The speed of lifting or lowering is controllable.

6. All jacks are tested at 1.25 times the rated capacity.

7. Equipped with fixed claw and folding handle.


Handle-type mechanical jack Performance

Model

1.5 t

3 t

5 t

10 t

Capacity(kg)

1500

3000

5000

10000

Running test load(KN)

22

44.1

73.5

147

Headroom(drawn close-up)Hmin(MM)

300

350

400

580

Dimensions   (MM)

A

81

83

108

124

B

100

130

140

140

C

600-900

735-1090

730-1075

800-1190

D

70-370

70-425

80-425

100-490

E

55

60

71

86

F

46

45

68

76

G

110

138

170

170

H

225

249

249

300

K

147

170

190

252

R

119

140

155

185

S

166

235

217

187

T

113

128

128

250

Net.weight(KG)

16

20

28

46
