Product details
The producthas been inspectedatvarious levels and conforms to the industry standard
Strict selection of raw materials
Strictly select raw materials that meet industry standards, and are processed and manufactured.
Deep thread
The fasteners we produce have clear threads, even and deep pitch, and good fastening effect.
Meticulous workmanship
Smooth surface without burrs, uniform force, stable and reliable quality

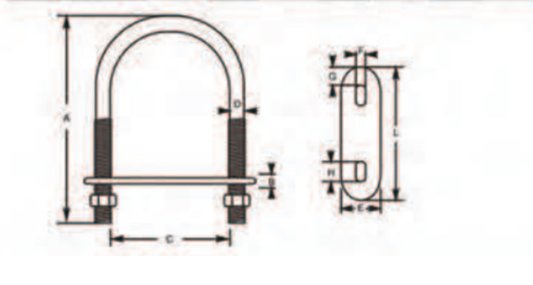

U-shaped bolt.Zinc plated
| ART MO | SIZE | A | B | C | D | E | F | G | H | L | N.W kg/100pcs |
| (mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| HY-3003 | 6 | 50 | 2 | 25 | 5.2 | 16 | 5.5 | 5 | 16 | 66 | 3.2 |
| HY-3003 | 6 | 55 | 2 | 29 | 5.2 | 16 | 5.5 | 5 | 16 | 70 | 3.5 |
| HY-3003 | 8 | 95 | 2 | 29 | 6.9 | 16 | 9 | 5 | 16 | 70 | 6.5 |
| HY-3003 | 8 | 82 | 2 | 43 | 6.9 | 16 | 9 | 5 | 16 | 85 | 7.9 |
| HY-3003 | 8 | 113 | 2 | 43 | 6.9 | 16 | 9 | 5 | 16 | 85 | 9.4 |
| HY-3003 | 8 | 82 | 2 | 50 | 6.9 | 16 | 9 | 5 | 16 | 92 | 9.8 |
| HY-3003 | 8 | 130 | 2 | 50 | 6.9 | 16 | 9 | 5 | 16 | 92 | 11 |
| HY-3003 | 8 | 70 | 2 | 35 | 6.9 | 16 | 9 | 5 | 16 | 77 | 6.9 |
| HY-3003 | 8 | 104 | 2 | 35 | 6.9 | 16 | 9 | 5 | 16 | 77 | 8.5 |
| HY-3003 | 8 | 140 | 2 | 68 | 6.9 | 16 | 9 | 5 | 16 | 110 | 12.5 |
| HY-3003 | 8 | 95 | 2 | 60 | 6.9 | 16 | 9 | 5 | 16 | 102 | 9.5 |

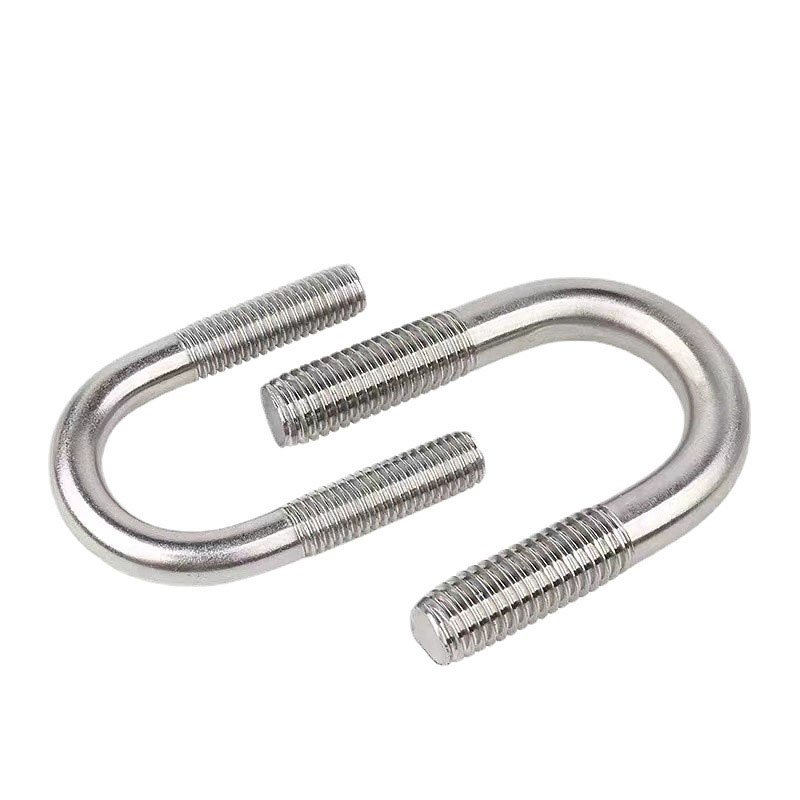

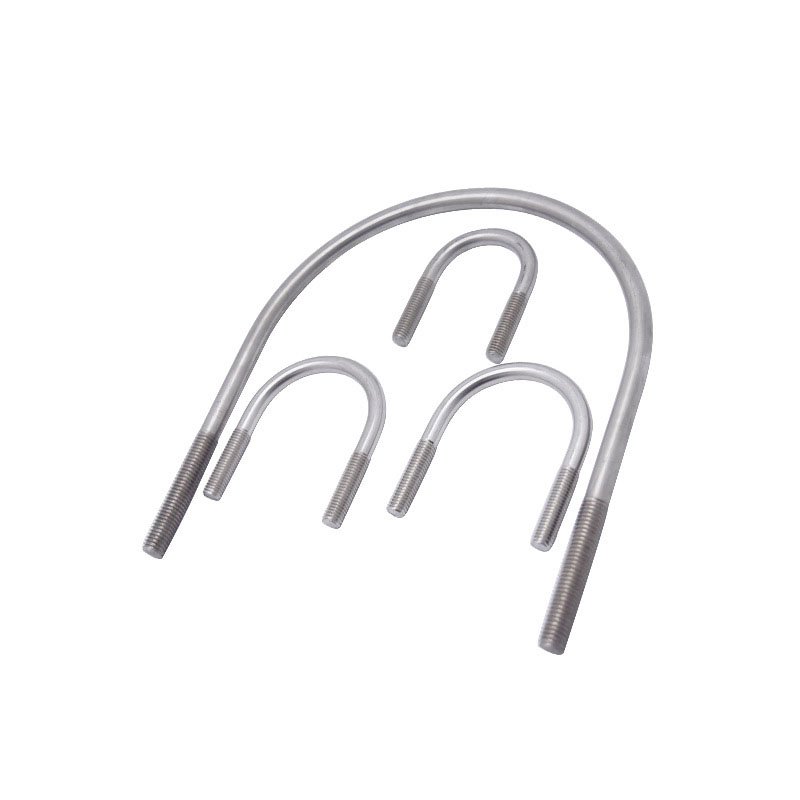

Detailed Photos
China Honyuan Machinery Co., Limited has evolved to become a full service supplier in distributing lifting products, material and handling tools, chains, rigging hardware, lifting slings and steel wire rope to serve our clients needs in the Oil and Gas, Crane and Rigging, Cable Installation, Stevedoring, Marine and General Construction industries. Besides we are also dealing with fasteners and other construction products to meet the requirements from our customers in this line.
