Stainless steel
Using superior grade rawmaterial marine grade stainless steel aisi 316/aisi304
Polished
Precision cast, high polished finish weather resistant high stability and strength.
All specificationsin stock
Fast connectand disconnectwidely usedin outdoor&indoorallspecificationsin stock，
large quantityavailable

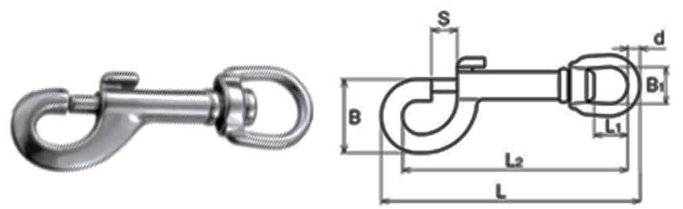

Stainiess Steel Swivel Bolt Snap Hook
| Product code | d(mm) | L(mm) | L1(mm) | L2(mm) | B(mm) | B1(mm) | S(mm) | Unit Weight(g) | Work Load Limit (kg) |
| HYR12-0401 | 3 | 64 | 10 | 55 | 18 | 11 | 6.5 | 22 | 30 |
| HYR12-0402 | 4 | 75 | 12 | 65 | 21 | 14 | 7.5 | 30 | 50 |
| HYR09-0203 | 4 | 88 | 15 | 76.5 | 24 | 17 | 8.5 | 50 | 70 |
| HYR09-0204 | 5 | 92 | 18 | 80.5 | 24 | 21 | 10 | 55 | 70 |

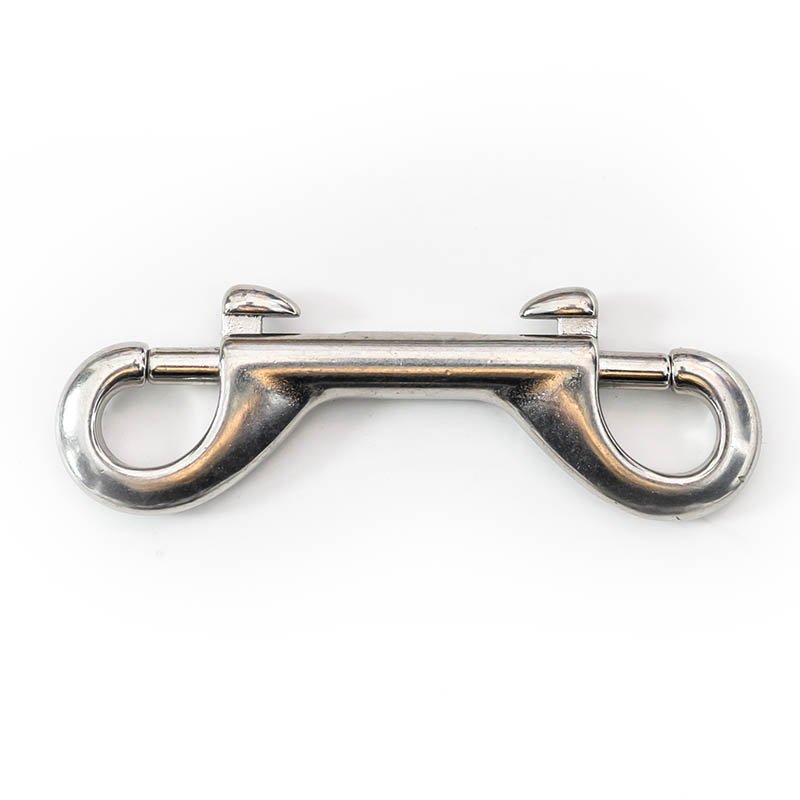

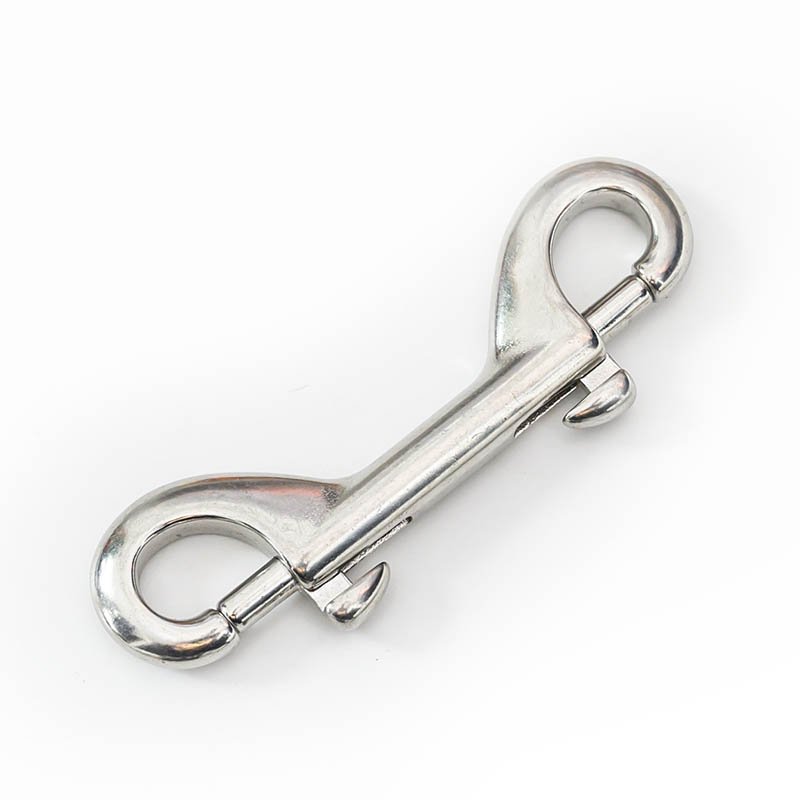

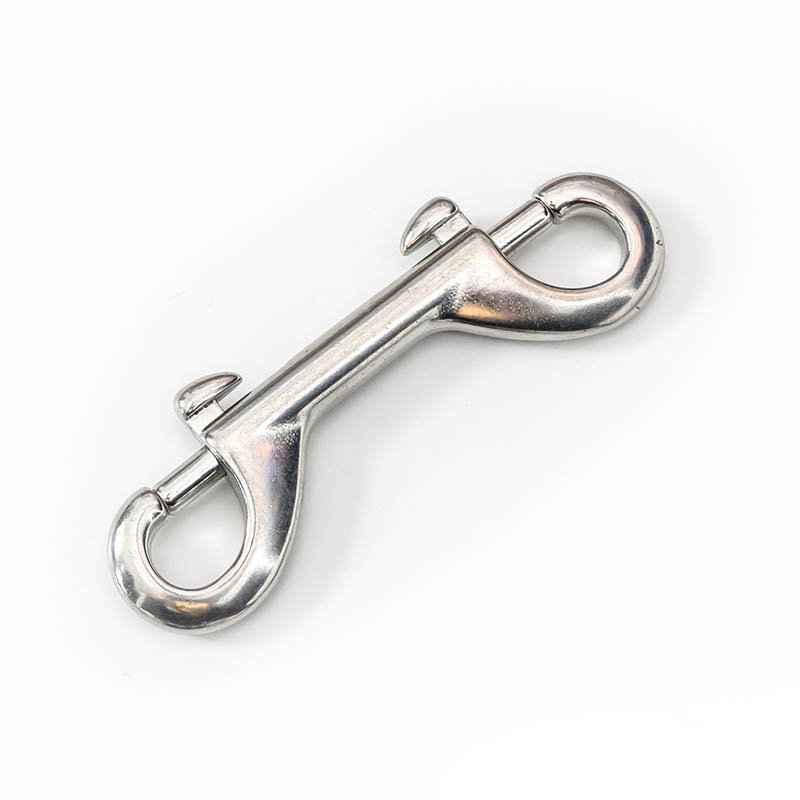

Detailed Photos
Material: Malleable Iron Q235 Stainless steel AISI 304 or 316
Surface: Electronic Galv or Self colored
Tech: Stamping
Packing: Carton packing, pallet
Origin: China
Port: Qingdao
Lead time: 15~45 Days
Main export market: USA, European countries, Russia, Middle East, Australia, Middle, etc.
Standard: CE, ISO
