Material : Polyester
Melting point : 215ºC
Specific gravity : 1.14
Elongation at breaking : 30~35%
●
Made of high tenacity low stretch polyester fiber, double braided constructure is ideal for cable pulling rope, factory spliced 6” pulling eyes at each end.
●
Features: * High strength * Low elongation * High UV resistance * Easy to splice
●
Applications: * Purse line * Slings * Tow ropes * General utility

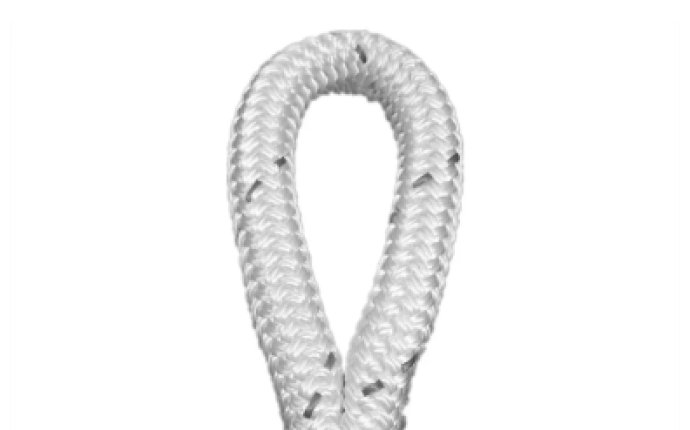

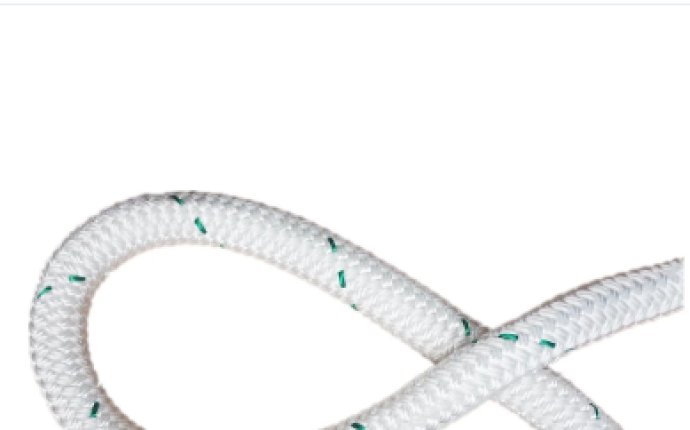

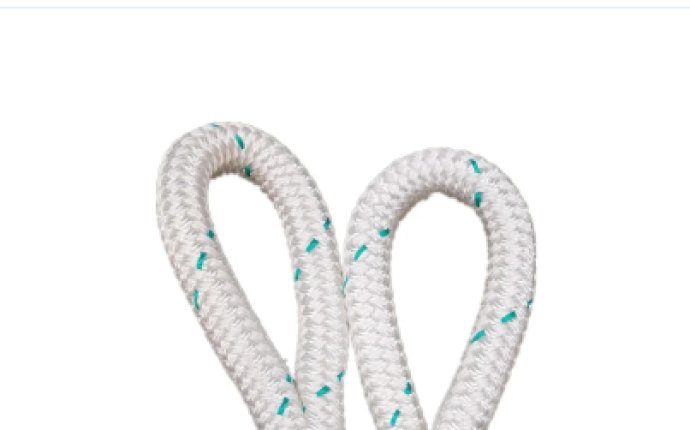

Polyester Cable Pulling Rope
| Size (mm) | Size (inch) | Circ. (inch) | Weight (kg/100m) | Weight (lb/100ft) | Breaking Load (kg) | Breaking Load (lb) |
| 10 | 3/8 | 1-1/8 | 7.5 | 5.04 | 2270 | 5000 |
| 12 | 1/2 | 1-1/2 | 14.3 | 9.60 | 4540 | 10000 |
| 14 | 9/16 | 1-3/4 | 19.5 | 13.09 | 6356 | 14000 |
| 16 | 5/8 | 2 | 24.2 | 16.25 | 7945 | 17500 |
| 18 | 3/4 | 2-1/4 | 29.3 | 19.67 | 9988 | 22000 |
| 22 | 7/8 | 2-3/4 | 47 | 31.55 | 14074 | 31000 |
| 24 | 1 | 3 | 57 | 38.27 | 18614 | 41000 |
| 28 | 1-1/8 | 3-1/2 | 67 | 44.98 | 21338 | 47000 |
| 30 | 1-1/4 | 3-3/4 | 84 | 56.39 | 24970 | 55000 |
| 36 | 1-1/2 | 4-1/2 | 115 | 77.21 | 33142 | 73000 |
