Hydraulic Pipe Benders

Product Properties



After-sales Service: Yes

Waterproof Rating: IPX-8

Warranty: 5-year

Condition: New

Certification: RoHS, ISO 9001:2000, ISO 9001:2008, CE

Automation: Semi-Automatic





Product Description

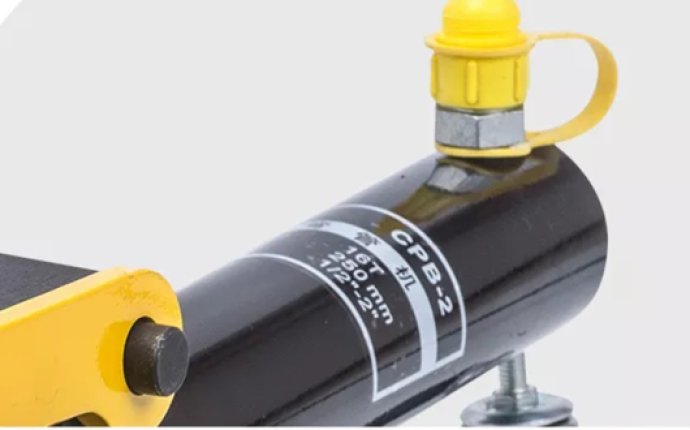

  • Fast connector+Plastic dust cover
    Fast connector+Plastic dust cover

    ●

    Threaded ZG3/8" quick coupling is used,With threadlocking and compact structure

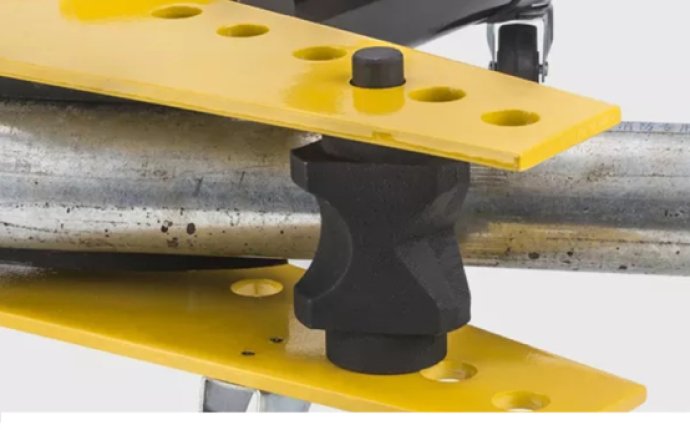

  • Adjustable stand column
    Adjustable stand column

    ●

    Suitable for bending pipes of different thickness

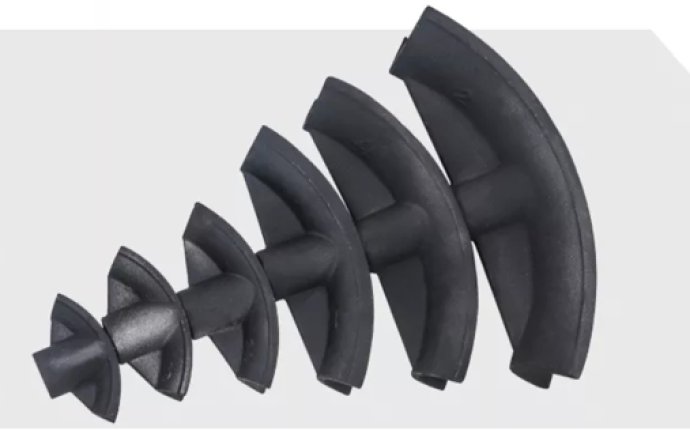

  • The Molds Are Made Of Ductile lron
    The Molds Are Made Of Ductile lron

    ●

    High strength,good toughness and elasticity,higher strengththan ordinary gray cast iron

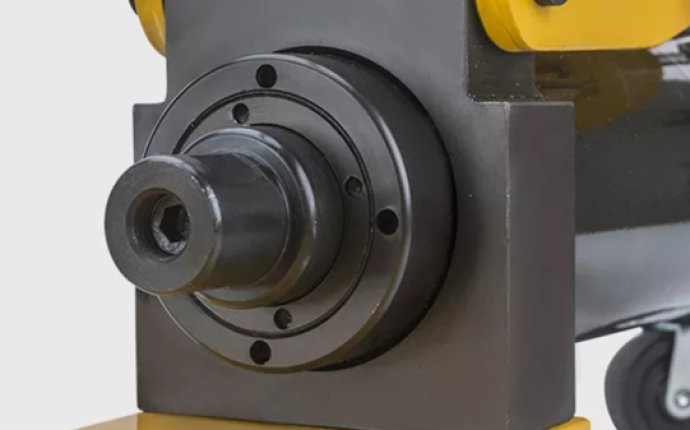

  • c209ccb2662a793f642ae1167299183
    c209ccb2662a793f642ae1167299183

    ●


Product Description:


Model

Output

Stroke

Bending Pipe Size

Pipe Wall Thickness

HY-MHB1

10T

170mm

1/4" - 1"

2-3.5mm

HY-MHB-2

16T

250mm

1/2" -2"

2.75-5mm

HY-MHB-3

18T

320mm

1/2" -3"

2.75-6mm

HY-MHB-4

21T

420mm

1/2" -4"

2.75-6mm

HY-MHB-5

21T

420mm

1/2" -5"

2.75-6mm

• Hydraulic pipe benders provide easier bending than manual mechanical benders.

• Bending rang up to 4'',portable design for construction.

• Cold bending pipes only in one turn.Up to 90 degree,hydraulic equipment makes more precise bending.

• Fast setup and disassembly,convenint removing with bottom wheels.

• Friendly use for European Environmental Standard with CE.
