Complete specifications
Overall use of high quality material.Than ordinary materiai hardness,moisture resistancenot easy to rust
Smooth surface without burrs
Smooth surface without burr,uniform force.Stable structure,aging resistance,long service life
Simple structure easy to use
Adopt professional testing equipment to strictly test the size and quality of products,so as to ensure the standard of products
Quality manufacturer
Can be customized according to customer requirementsa variety of specifications.Can be customized to draw samples.We will provide you with a reference solution

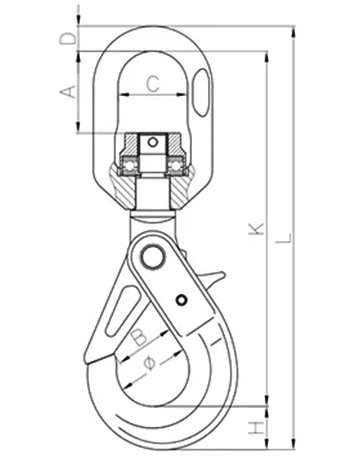

G80 Swivel Self-Locking Safety Hook
| Product code | Size | Kg/pc | WLL/T | B.L/T |
| HYR02-H0701 | 6-8 | 0.7 | 1.2 | 4.8 |
| HYR02-H0702 | 7/8-8 | 1.3 | 2 | 8 |
| HYR02-H0703 | 10-8 | 2.2 | 3.2 | 12.8 |
| HYR02-H0704 | 13-8 | 0.5 | 5.4 | 21.6 |
| HYR02-H0705 | 16-8 | 8.2 | 8.2 | 32.8 |
| HYR02-H0706 | 18/20-8 | 11.7 | 12.5 | 50 |
| HYR02-H0707 | 22-8 | 16 | 15 | 60 |
| HYR02-H0708 | 26-8 | 21.5 | 21.2 | 84.8 |
| HYR02-H0709 | 32-8 | 31.5 | 126 |

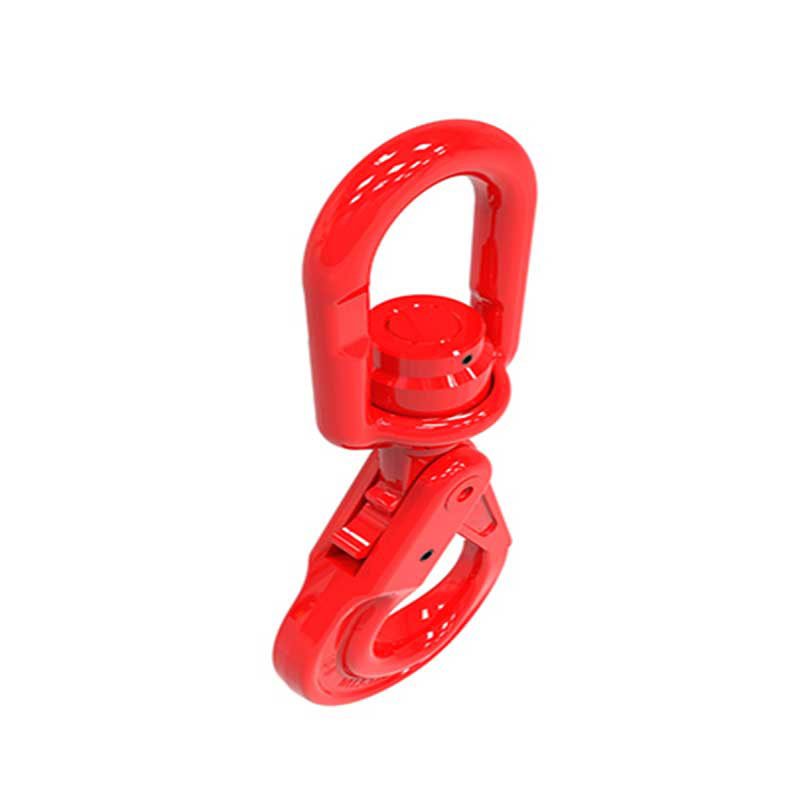

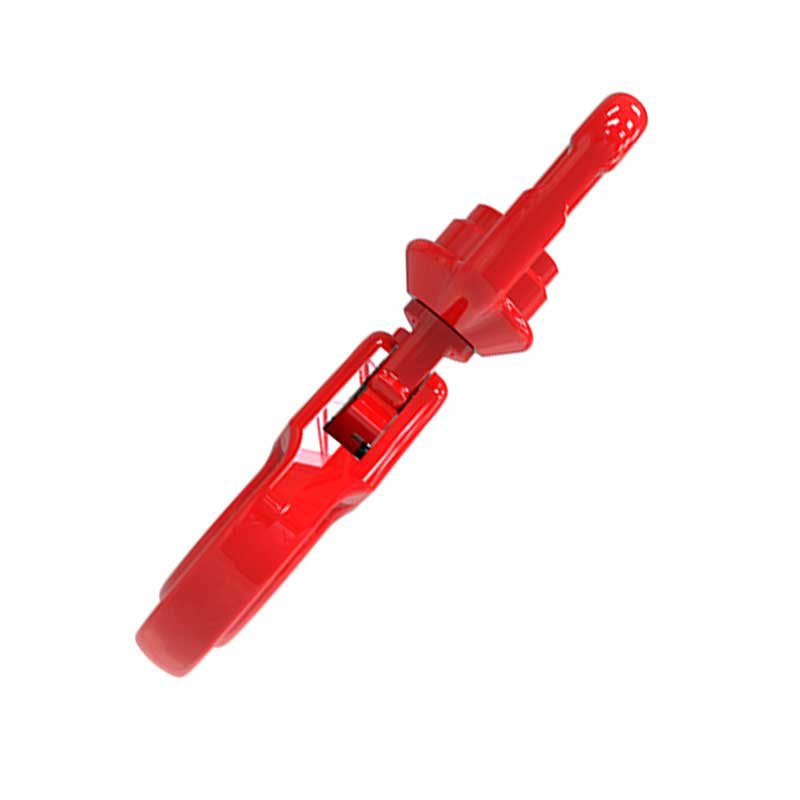

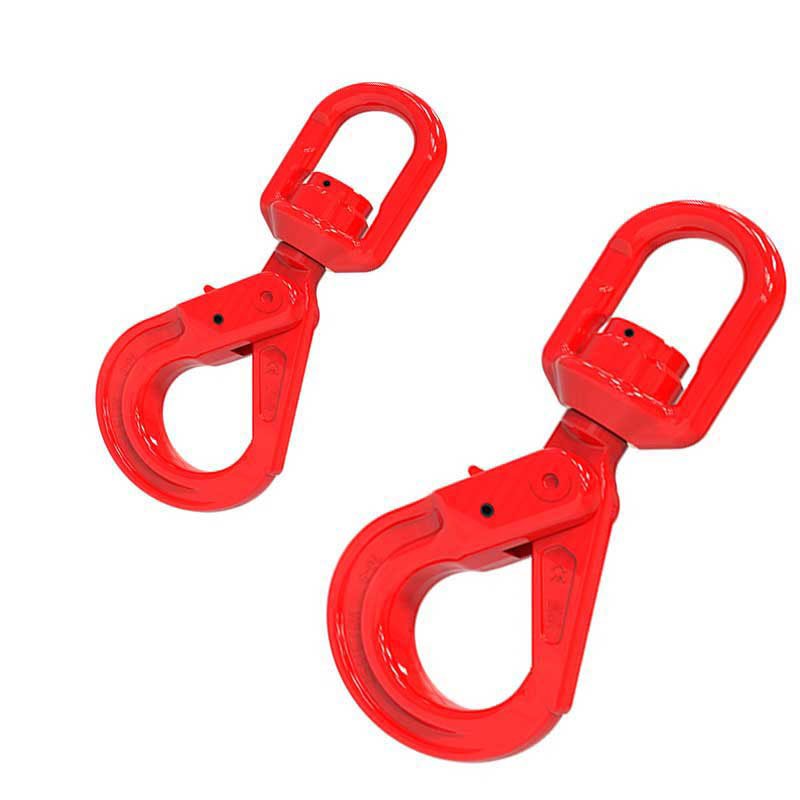

Detailed Photos
Sling Hook Forged super alloy steel-Quenched and Tempered.
Individually proof test at 2.5times working load limit.
Fatiuge teated at 1.5times working load limit for 20000 cycles.
Breakage test. 100%mangaflux crack detecation.
All load pains are 100% individually inspected and tested.
Surface finish: Powder plastified
Colour code: , Red, Blue, Black, etc
Ultimate load is 4 times the working load limit.
Customized requirements are welcome!
