Carefully selected mat
Strictlyuse raw materials for production,refuse to cut corners
Mature technology
Years of industry production experience,mature technology
Strict quality inspection
Strictly control each procedure and strictlytest the products
Support customization
Factory processing and manufacturing can be customized according to your reasonable needs

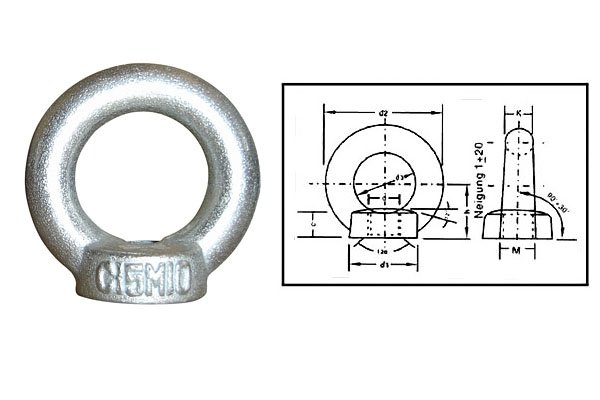

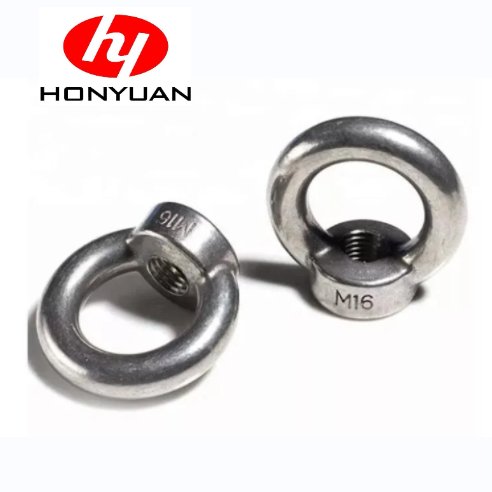

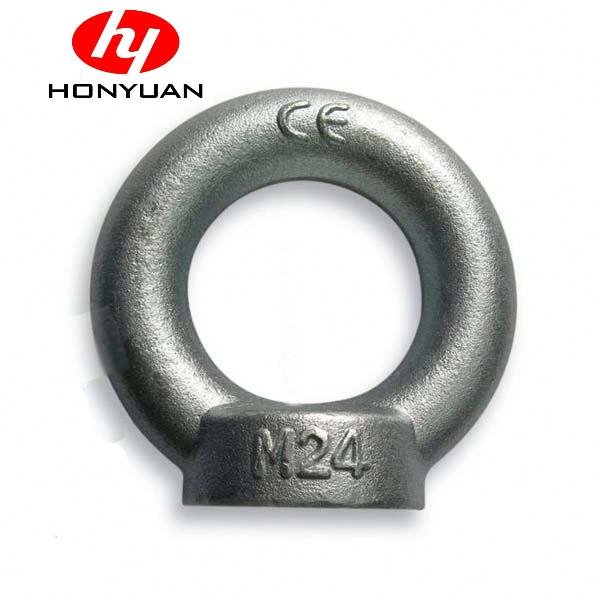

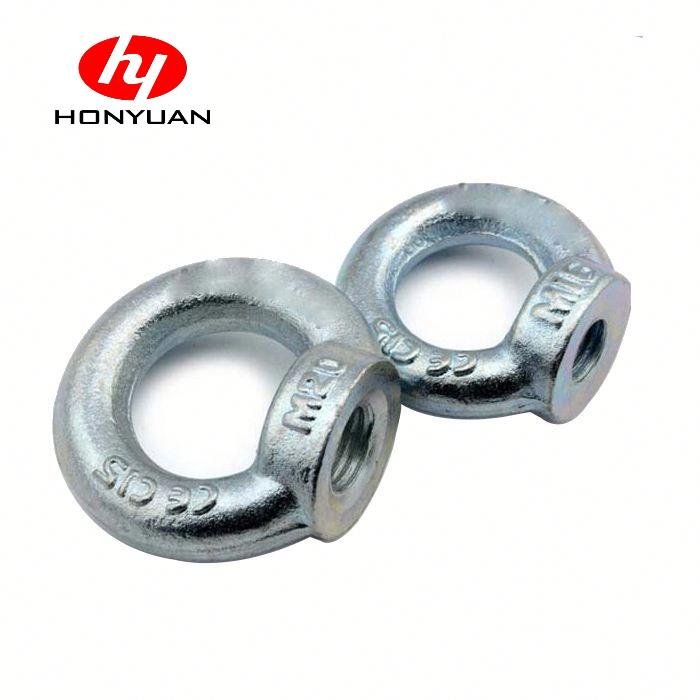

DIN582 EYE NUT
| SIZE/MM | WEIGHT/KG | WLL/T | di | d3 | d3 | b | e | h |
| M6 | 0.05 | 0.07 | 20 | 36 | 20 | 8.5 | 18 | 8 |
| M8 | 0.05 | 0.14 | 20 | 36 | 20 | 8.5 | 18 | 8 |
| M10 | 0.09 | 0.23 | 25 | 45 | 25 | 10 | 22 | 10 |
| M12 | 0.16 | 0.34 | 30 | 54 | 30 | 11 | 26 | 12 |
| M16 | 0.24 | 0.7 | 35 | 63 | 35 | 13 | 30 | 14 |
| M20 | 0.36 | 1.2 | 40 | 72 | 40 | 16 | 35 | 16 |
| M22 | 0.58 | 1.5 | 45 | 81 | 45 | 18 | 40 | 18 |
| M24 | 0.72 | 1.8 | 50 | 90 | 50 | 20 | 45 | 20 |
| M27 | 0.7 | 2.5 | 50 | 90 | 50 | 20 | 45 | 20 |
| M30 | 1.32 | 3.6 | 65 | 108 | 60 | 25 | 55 | 24 |
| M33 | 1.3 | 4.3 | 65 | 108 | 60 | 25 | 55 | 24 |
| M36 | 2.08 | 5.1 | 75 | 126 | 70 | 30 | 65 | 28 |
| M39 | 2.02 | 6.1 | 75 | 126 | 70 | 30 | 65 | 28 |
